Description

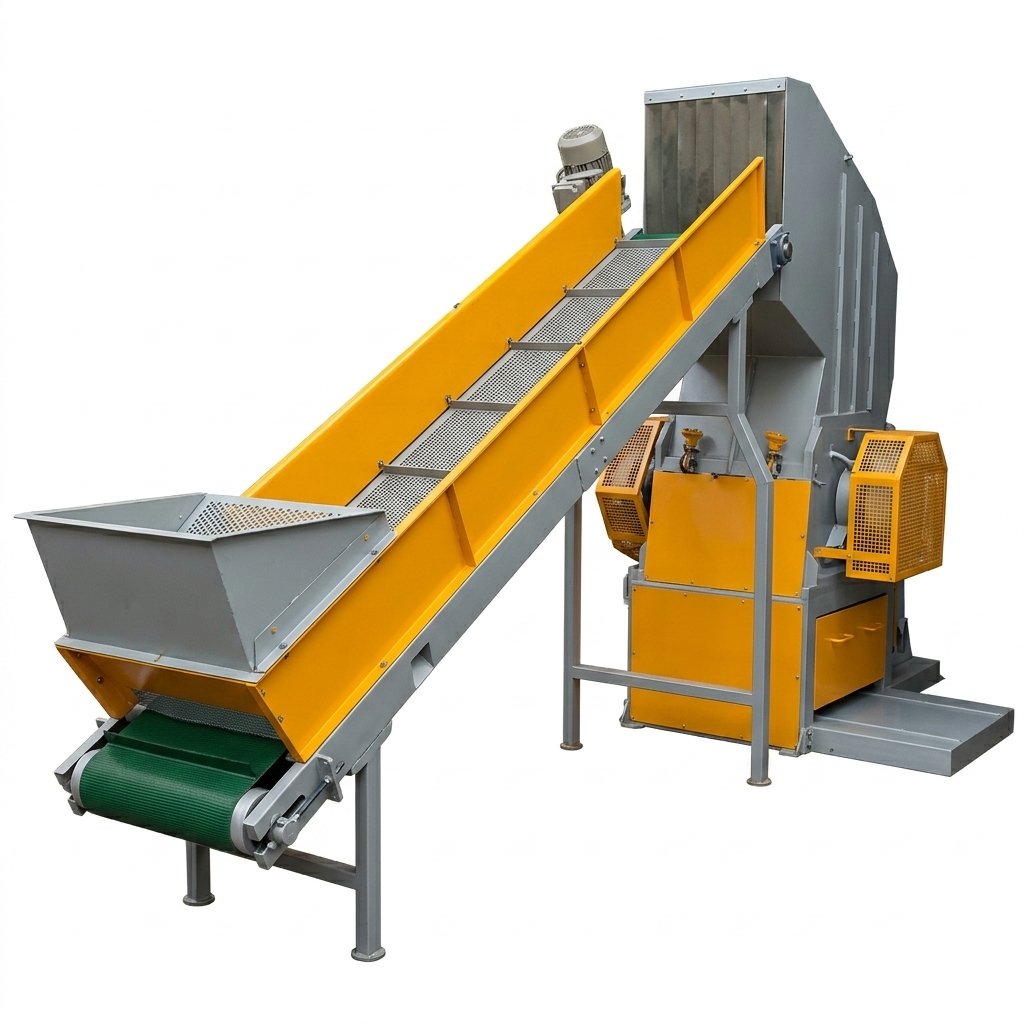

The FG600 GRINDER WITH CONVEYOR FEEDING by KGR Engisol is an advanced grinding system designed to streamline the processing of bulk plastic scrap through automated conveyor-based feeding. This configuration is particularly advantageous for facilities handling high volumes of molding scrap, pipe offcuts, profiles, or mixed rigid plastic waste, where manual loading would otherwise slow production and increase labor dependency. The integrated conveyor continuously transports material into the grinder’s feed chamber, ensuring a steady and uniform supply that enhances cutting efficiency and improves throughput consistency. At the core of the system is the FG600 grinder platform, built with a robust rotor assembly, hardened knives, and a large cutting chamber capable of reducing difficult plastic materials with dependable performance. The conveyor feeding system is synchronized to prevent overloading, allowing the grinder to operate within its optimal torque range and reducing mechanical stress on the drive components. This not only improves overall line reliability but also increases operator safety by minimizing direct material handling. The machine’s replaceable screen, reinforced frame, and accessible maintenance design make it a practical and high-productivity solution for recycling plants, extrusion units, and plastic recovery operations. For businesses seeking a more automated and efficient waste reduction workflow, the FG600 GRINDER WITH CONVEYOR FEEDING offers a highly effective blend of power, consistency, and labor savings.
Key Features
- Integrated conveyor feeding for continuous scrap input
- High-capacity FG600 grinding platform for industrial scrap
- Uniform feed rate to improve grinder efficiency and consistency
- Hardened knives and robust rotor for reliable size reduction
- Reduced manual handling for safer plant operations
- Replaceable screen for controlled output particle size
- Designed for continuous industrial recycling applications
Technical Specifications
| Specification | Detail |
| Model Series | FG600 Conveyor Feed Grinder |
| Feed System | Motorized Conveyor Feeding |
| Feed Opening | 600mm Class Chamber |
| Rotor Diameter | 450mm to 550mm |
| Motor Power | 20 HP to 30 HP |
| Rotor Speed | 450 – 650 RPM |
| Knife Configuration | Hardened Steel Rotary / Fixed Knives |
| Screen Hole Size | 8mm to 16mm |
| Throughput Capacity | 400 – 700 kg/hr (Material dependant) |
| Application Standard | Automated Plastic Scrap Grinding |
Applications
- Conveyor-fed grinding of molded plastic scrap
- Automated reduction of pipe and profile offcuts
- High-volume recycling plant material handling
- Preparing scrap for pelletizing and reprocessing
- Reducing manual loading in industrial plastic recovery
