Description

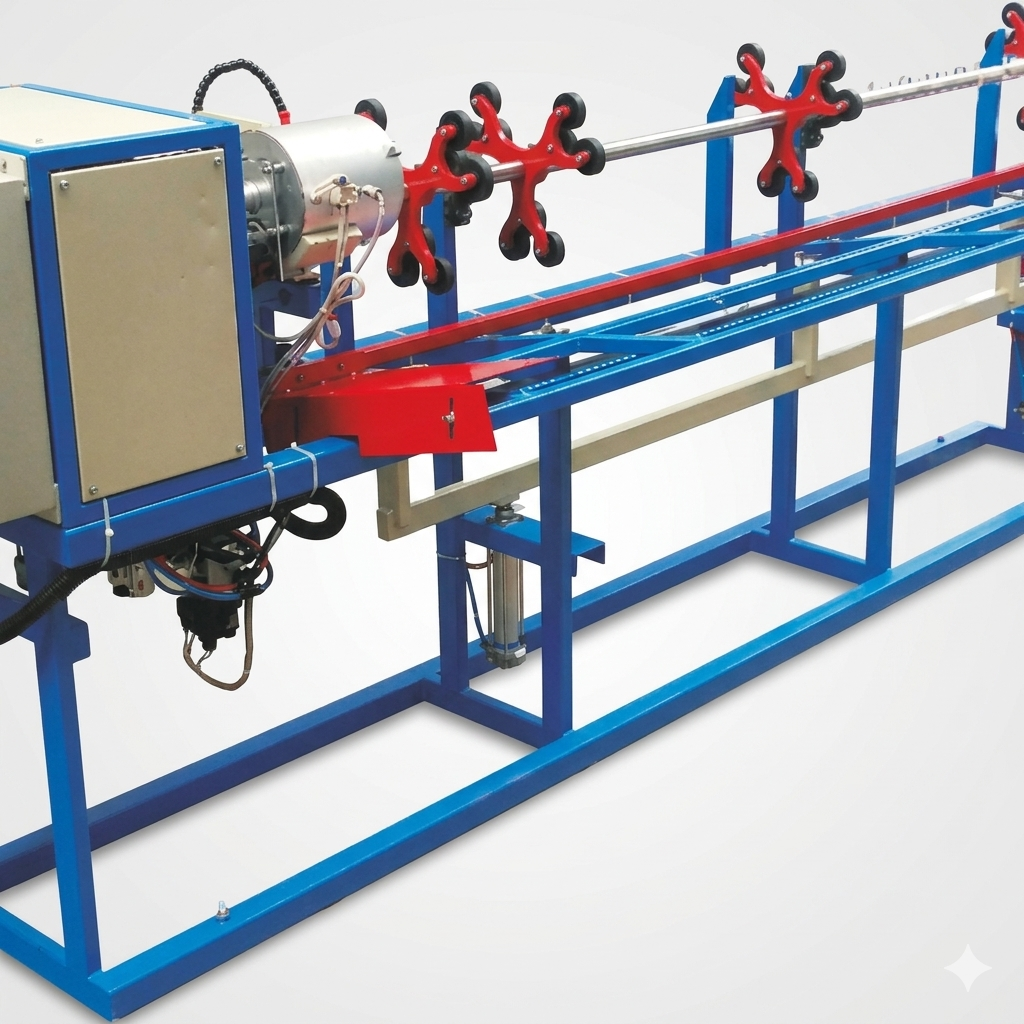

The CONDUIT PIPES OFFLINE AUTOMATIC SOCKETTING MACHINE by KGR Engisol is a fully automated finishing system engineered for the high-speed socketing of conduit pipes after extrusion. Unlike inline systems that operate directly on the extrusion line, this offline machine allows pipe lengths to be accumulated and socketed in a separate finishing area, which provides production flexibility and helps reduce bottlenecks on the main extrusion line. The machine is designed to produce accurate socket profiles for conduit applications, ensuring consistent depth, shape, and sealing performance for each pipe. A controlled heating zone softens the pipe end uniformly, while the automatic forming station creates the socket with high repeatability and dimensional accuracy. The conveyor or transfer mechanism moves pipes through the stages of heating, forming, cooling, and ejection with minimal manual intervention, resulting in improved productivity and lower labor dependency. Built with a PLC-based control architecture, the system supports programmable cycle timings, adjustable socket parameters, and reliable synchronization across multiple stations. Its robust mechanical design and precision tooling make it suitable for electrical conduit pipe manufacturers who demand efficient, high-volume socketing with consistent quality. For plants seeking to optimize post-extrusion finishing, the CONDUIT PIPES OFFLINE AUTOMATIC SOCKETTING MACHINE offers a dependable, production-ready solution.
Key Features
- Offline production flow to reduce bottlenecks on the main extrusion line
- Automatic heating, forming, cooling, and ejection sequence
- Accurate socket shape and depth for conduit pipe applications
- PLC-based control for repeatable cycle management
- Suitable for high-volume finishing operations
- Reduced manual labor and improved process consistency
- Robust tooling for long service life and low maintenance
Technical Specifications
| Specification | Detail |
| Model Series | Offline Automatic Socketting Machine |
| Pipe Length Range | Up to 6000 mm |
| Socket Types | Solvent Cement / SWR / Elastomer Ring Fit |
| Heating Section | Ceramic Infrared Heating |
| Pipe Loading | Manual / Semi-Automatic Feed |
| Pipe Rotation | Automatic |
| Tool Ejection | Pneumatic / Hydraulic |
| Control System | PLC with HMI Interface |
| Cooling System | Water Cooling |
| Application Standard | Conduit Pipe Socketing |
Applications
- Offline socketing of electrical conduit pipes
- Finishing PVC pipes in separate production batches
- Creating solvent cement joint sockets
- Improving production flexibility in extrusion plants
- Supporting high-volume conduit pipe finishing operations
