Description

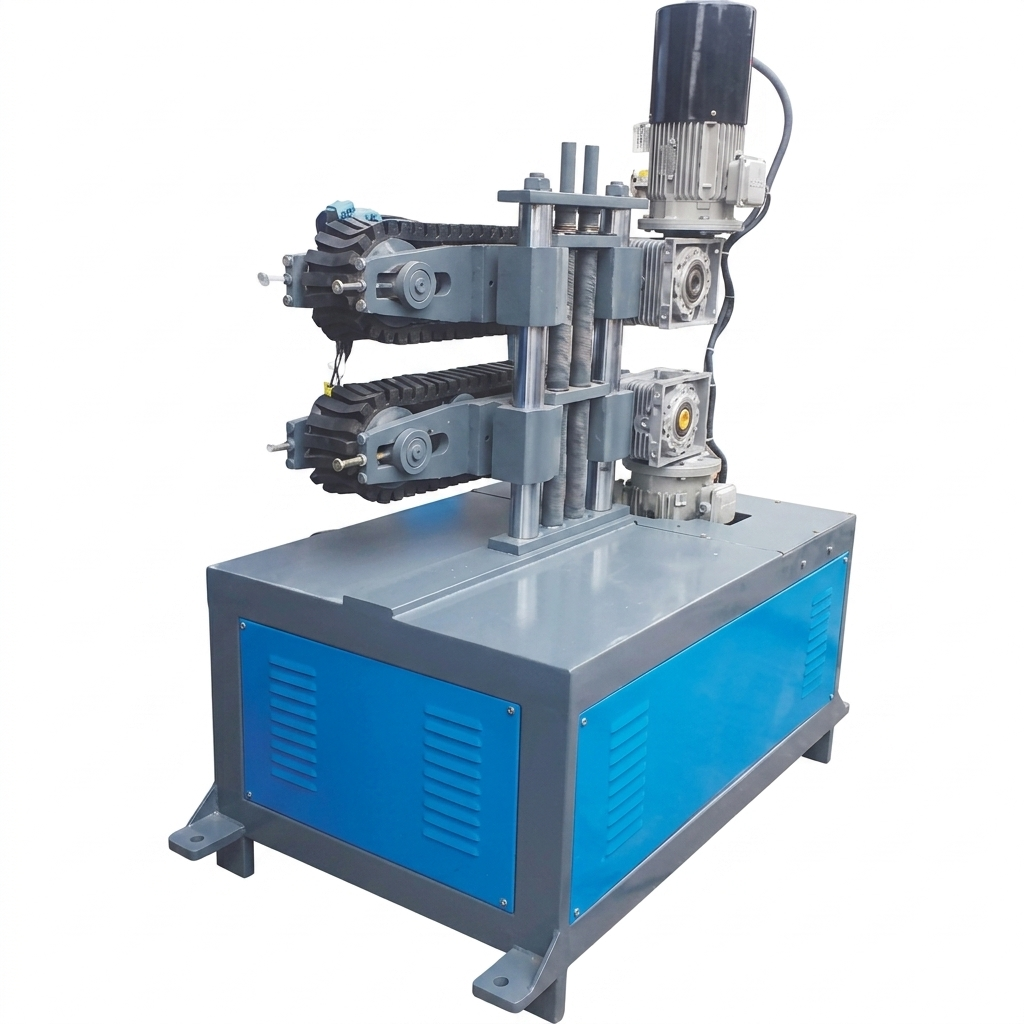

The HAULOFF 6INCHES FOR PIPES UPTO 6INCHES by KGR Engisol is a heavy-duty traction unit designed for PVC and rigid plastic extrusion lines producing pipes up to 6 inches in diameter. As pipe size increases, the haul-off must deliver greater pulling force while maintaining precise synchronization with the extruder output to avoid stretching, ovality, or surface damage. This model uses a reinforced belt traction system that evenly grips the pipe surface, providing controlled movement and excellent stability during cooling and cutting. The machine is engineered with adjustable belt pressure and a robust frame, allowing it to handle heavier pipe sections without slippage or deformation. Its synchronized drive system ensures that line speed remains consistent across varying production conditions, which is essential for maintaining dimensional accuracy and roundness in larger pipe profiles. A strong alignment mechanism keeps the pipe centered as it moves through the unit, reducing the risk of tracking errors that could affect final quality. Built for long production cycles and minimal maintenance, the HAULOFF 6INCHES FOR PIPES UPTO 6INCHES is ideal for conduit, utility, and plumbing pipe manufacturers who require dependable traction and accurate line control in more demanding extrusion environments.
Key Features
- Suitable for pipes up to 6 inches in diameter
- Heavy-duty belt traction for strong and uniform pulling force
- Adjustable pressure control for different wall thicknesses
- Synchronized speed matching with extruder output
- Strong pipe alignment system for straight, stable movement
- Durable frame for continuous industrial operation
- Low maintenance design for efficient line uptime
Technical Specifications
| Specification | Detail |
| Model Series | 6-Inch Pipe Haul-Off |
| Pipe Diameter Range | Up to 6 Inches |
| Traction System | Dual / Multi-Belt Grip System |
| Belt Material | Wear-Resistant Rubber / PU |
| Drive Motor | 2.2 kW to 4 kW |
| Speed Control | VFD / Synchronized Drive |
| Clamping Pressure | Adjustable Pneumatic / Mechanical |
| Frame Material | Heavy-Duty Fabricated Steel |
| Line Synchronization | Extruder-Synchronized Pulling |
| Application Standard | PVC Pipe Extrusion Lines |
Applications
- Pulling larger conduit and utility pipes
- Maintaining line speed in PVC extrusion plants
- Feeding pipes into automatic cutting or socketing stations
- Preserving pipe roundness during cooling and haul-off
- Supporting high-output pipe manufacturing operations
