Description

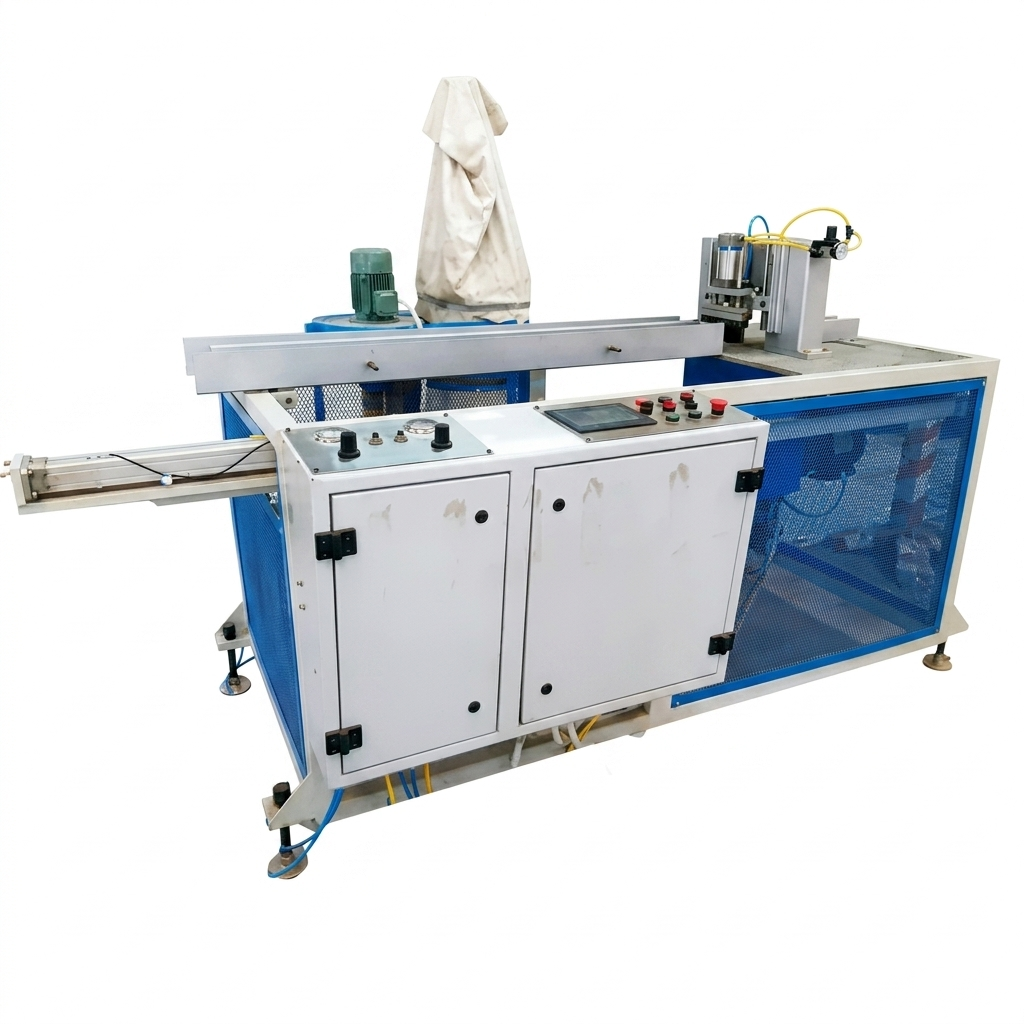

The AUTOMATIC CUTTING SAW FOR PIPES UPTO 165MM(ACS165) from KGR Engisol is a robust automated cutting solution specifically designed for larger-diameter PVC pipes and related extruded profiles. As pipe diameters increase, maintaining cut accuracy becomes more challenging due to greater mass, blade resistance, and the need for precise clamping force. The ACS165 addresses these challenges through a line-synchronized servo drive, a reinforced pipe support structure, and a high-torque cutting assembly capable of cleanly severing pipes up to 165mm in diameter. Its PLC-driven control system allows the operator to configure cutting lengths, cycle timing, and blade engagement parameters, making it suitable for a wide range of pipe production schedules. The machine’s heavy-duty clamp system stabilizes the pipe during each cut, eliminating movement and reducing edge deformation, while the blade housing and dust extraction port help maintain a safe and tidy production area. Engineered for continuous operation in demanding extrusion environments, this cutting saw delivers the speed, precision, and repeatability needed to support large-volume conduit, plumbing, and utility pipe output. For manufacturers seeking a dependable end-of-line cutting solution for larger pipes, the AUTOMATIC CUTTING SAW FOR PIPES UPTO 165MM(ACS165) provides an industrially proven balance of automation and precision.
Key Features
- Designed for pipe diameters up to 165mm with stable cutting performance
- Servo-driven cutting cycle for precise line synchronization
- Reinforced clamping system to prevent pipe movement during cut
- Heavy-duty saw blade assembly for clean and accurate edges
- PLC-based length and cycle control for operational flexibility
- Dust extraction port to improve cleanliness and safety
- Strong frame construction for long service life under industrial loads
Technical Specifications
| Specification | Detail |
| Model Series | ACS165 Automatic Cutting Saw |
| Pipe Diameter Range | Up to 165mm |
| Cutting Method | Automatic Circular Saw |
| Blade Diameter | 400mm to 500mm |
| Drive System | Servo Motor + Pneumatic Clamping |
| Cutting Accuracy | ±0.5 mm (Approx.) |
| Control System | PLC with HMI Touch Panel |
| Material Support | Heavy-Duty Pipe Support Rollers |
| Dust Extraction | Integrated Industrial Suction Port |
| Application Standard | Large-Diameter PVC Pipe Extrusion Lines |
Applications
- Cutting large-diameter PVC conduit and utility pipes
- High-speed trimming in heavy-duty extrusion plants
- Automatic cutting for plumbing and pressure pipe lines
- End-of-line finishing for rigid pipe manufacturing
- Production of consistent lengths for packaging and dispatch
